MCNP-xAP Rack Mount Connector Network Panel Rating IP41 + Angled fit of adapters
![MCNP-xAP Rack Mount Connector Network Panel Rating IP41 + Angled fit of adapters](https://intra.optokon.com/intra/product-documents/595/MCNP-xAP.png)
The MCNP-xAP Connector Network Panel is an affordable optical distribution frame that can be mounted on a 19” rack. It is designed for splicing pre-made pigtails, pre-terminated cables, and connectors that can be installed on site. The panel is made from a lightweight and durable aluminum-magnesium alloy, which makes it easy to handle during installation and operation, and also helps keep transportation costs low.
The incoming cables are connected to the rear panel of the unit using a PG cable gland, which helps the MCNP-xAP meet the IP41 rating. The pivoting shelf on the panel can be equipped with either a splice tray holder or bend radius protection to guide, store, and organize excess slack. This helps prevent damage to fibers before they are routed into couplings.
The MCNP-xAP is equipped with angled adapters that prevent direct eye contact with the fiber optic light beam and reduce the risk of exposure to the laser.
- Splicing and termination optical cable in one box
- Pivoting shelf eases connector routing and cable routing
- Installation of adaptors under angle
- Splice cassette holder enables cable termination with the help of pigtail splicing
- Made of lightweight aluminum-magnesium alloy
- Rating IP41
- PG16 cable gland and optionally grounding provisions
- Accepts the industry's most common connector types
- FTTH use - microtubes holder included
- Durable powder coat finish light grey color (RAL 7038), next color optionally on request
- Special front panel from luxury Stainless Steel Look (SSL) material meet IP41 rating
PART NUMBER |
RACK UNITS |
RATING IP41 |
DIMENSIONS (HxWxD) mm |
SHIP WGT (kg) |
MCNP - 1AP |
1 |
– Special SSL front panel |
44 x 432 x 250 |
1.4 |
MCNP - 2AP |
2 |
88 x 432 x 250 |
2.1 |
|
MCNP - 3AP |
3 |
133 x 432 x 250 |
3.4 |
|
MCNP - 4AP |
4 |
178 x 432 x 250 |
3.9 |
![]() |
![]() |

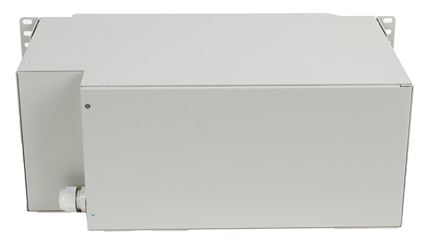

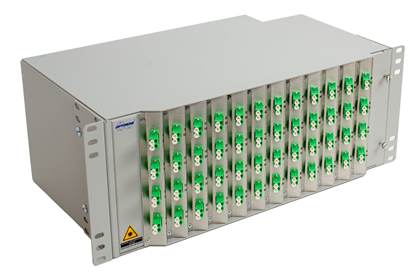

MCNP-4AP-96-DLCF A-C-8 front view | MCNP-4AP-96-DLCF A-C-8 back view |
![]() |
![]() |

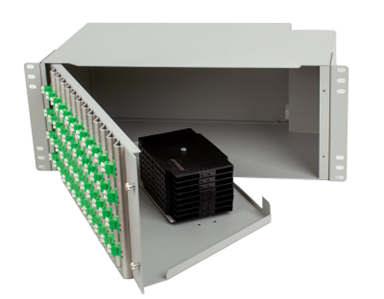

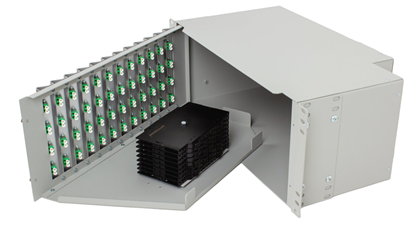

MCNP-4AP-96-DLCF A-C-8 opened | MCNP-4AP-96-DLCF A-C-8 inside view |
![]() |
![]() |

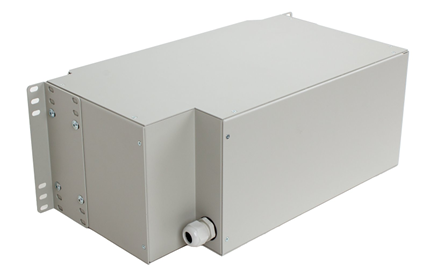

MCNP-4AP-96-DLCF A-C-8 side view (PG16) | Grounding accessories - optional |
MCNP |
- |
xAP |
- |
XX |
- |
XX(F)1 X |
- |
X - XX |
/(G)2 |
|||||
|
|
|
|
|
|
|
|
|
||||||
x - Size (Rack unit) |
|
|
|
|
|
|
X - Option for fiber termination |
|||||||
1 - 1U |
|
|
|
|
|
B |
Bend radius protectors |
|||||||
2 - 2U |
A - Angled adapters |
|
|
|
|
C |
Splice cassette for 12 splicing |
|||||||
3 - 3U |
P - Protected IP41 |
|
|
|
|
|
||||||||
4 - 4U |
|
|
|
|
|
XX - Number of splice cassettes |
||||||||
|
|
|
|
|
|
(C-option) |
||||||||
|
Fiber capacity |
|
|
|
|
0 |
No cassette (only splice holder) |
|||||||
|
12, 24, ... fibers |
|
|
|
|
1 - 3 |
# Splice cassettes for 1U |
|||||||
|
|
|
|
|
|
1 - 8 |
# Splice cassettes for 2U |
|||||||
|
Coupling type |
|
|
|
|
1 - 12 |
# Splice cassettes for 3U |
|||||||
|
XX |
|
X |
|
|
1 - 12 |
# Splice cassettes for 4U |
|||||||
|
SC(F) |
SC |
|
M |
Multimode |
|
|
|
||||||
|
DLC(F) |
Duplex LC |
|
S |
Singlemode |
|
|
|
||||||
|
FC |
FC |
|
A |
APC |
|
|
|
||||||
|
E2(F) |
LSH (E2000) |
|
|
|
|
|
|
||||||
|
DSC(F) |
Duplex SC |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note: 1) F - Fixed adaptors by screws (Can be used in case of sufficient space, subject to the number of adapters)
2) G - Grounding option – Protection grounding wires installed
