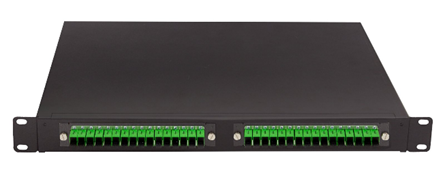

PUDOS 19” Rack mount Optical Distribution Frame for Data Centers

Rack mount Wall mount

PUDOS 19” Rack mount Optical Distribution Frame for Data Centers

The PUDOS is an economical rack mountable patch panel for use with manufactured pigtails, pre terminated cables. The cables are strain-relieved at the rear of the unit. This prevents damage to fibers prior to routing into couplings. In addition the sligh-out shelf allows full access to the internal fiber connection, easy cleaning and connection management. The modular system allows splicing and termination up to 1536 fibers (with SN-MT connectors) in rack height 1U (PUDOS-1).

DOS^® Data Center Cable

Designed for cable or microtubes termination
Compact robust design
Slide-out shelf provides unrestricted access
Changeable front panel, various adapters
Coupling adapters mounted on the front panel or in CNPM panels
Accommodates up to 1536 fibers in 1 rack unit
Durable powder coat finish
Cable strain-relief and grounding provisions
Accepts the industry's most common connector types and SN-MT connectors
Durable powder coat finish colour RAL 7021 Material-Aluminium-magnesium alloy - low weight and shipment costs

PART NUMBER	MAX FIBER CAPACITY		RACK UNITS	DIMENSIONS (HxWxD) mm	SHIP WGT (kg)
	FT-1E-CNPM	FT-24-XX
PUDOS-1¹	1152²	15361	1	44 x 432 x 350	1.8

^{1) 1U height

2) Fiber capacity depends on the type of connectors used; maximum connected fibers is possible with SN-MT 4CH (16F) adapters}

Coupling panels FT series available for the common used connector adapter types in following configuration:

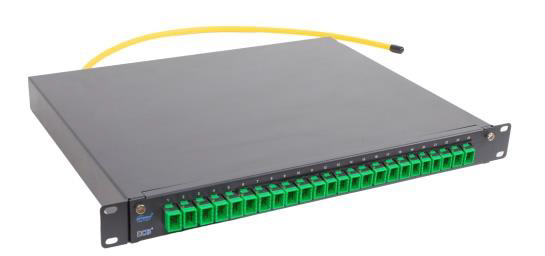

FT-24-XX           24 holes for SN-MT, MTP/MPO, SC, ... adapters
FT-1E-CNPM     3 holes for CNPM panels with SN-MT, MTP/MPO, SC, DSC, DLC, QLC, ... adapters
FT-1L-CAPL       2 holes for CAPL cassettes with 16x SC, DLC, E2 adapters

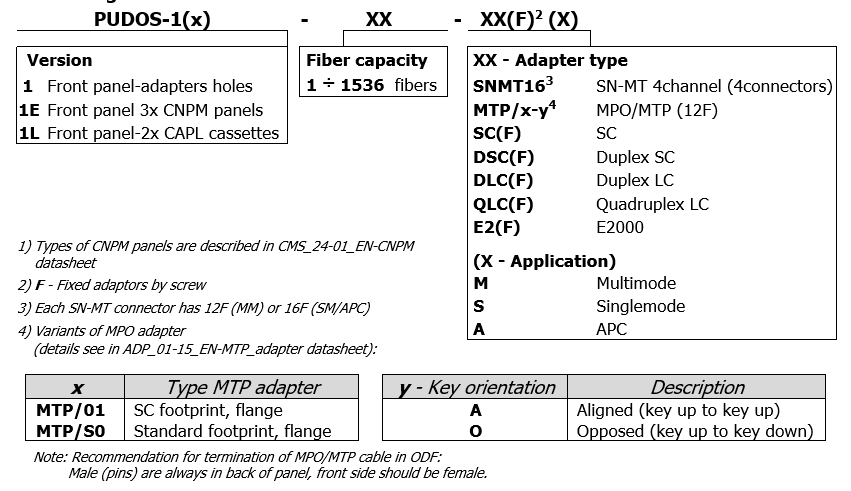

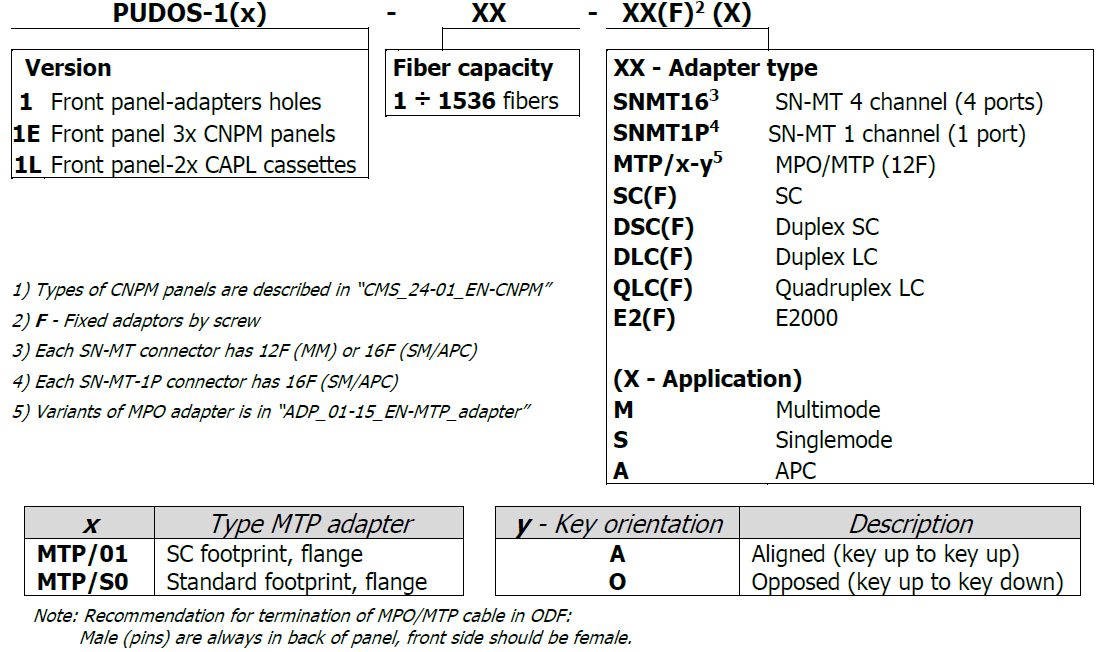

Product information and specifications:


PUDOS-1E-864-SNMT12 M	*CNPM panel with 6x SNMT12 adapters*
	Front panels:
	FT-1E-CNPM 3 holes for CNPM panels FT-1L-CAPL 2 holes for CAPL cassettes FT-24-SNMT16 24 holes for SN-MT 4 channels FT-24-MTP 24 holes for MTP adaptors

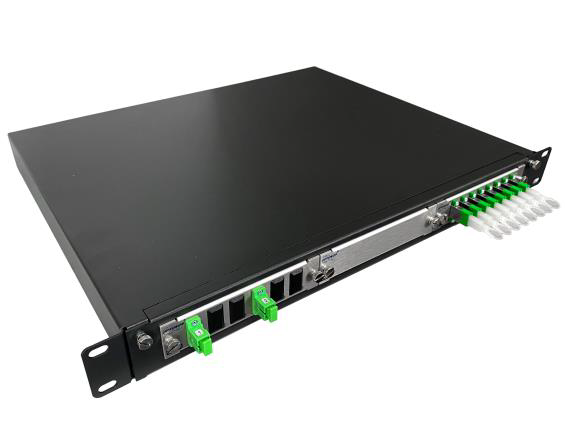

PUDOS-1E previews:

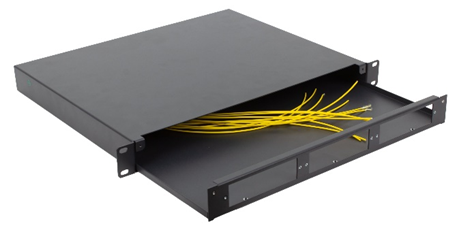

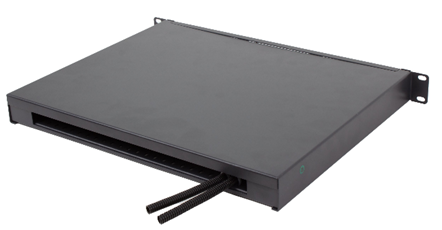

PUDOS-1E front view Sliding shelf with holes for remove able CNPM coupling panels	PUDOS-1 rear view Entry and fixation for up to 24 cables onto sliding shelf

Termination via PUDOS-1L with CAPL fan-out cassette

Connection of end device by using fan-out CAPL cassette:
- Rear panel SN-MT16 multifiber connector
- Front panel 16x E2000, SC, duplex LC connectors

The system is based on the same DOS cable with 96 fibers, 16 fibers are stored in 6 tubes. One or two tubes terminated with SN-MT16 connectors are connected into SN-MT adaptor at rear panel of CAPL cassette. Internal fan-out from SN-MT16 ensures interconnection to 16 connectors terminated in adaptors at CAPL front panel

PUDOS-1L previews:

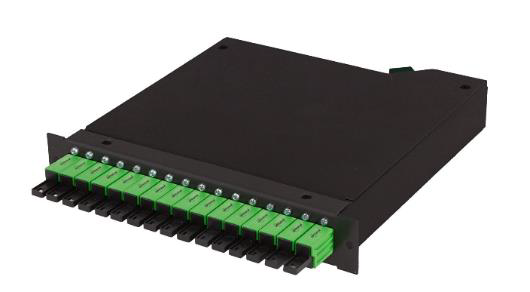

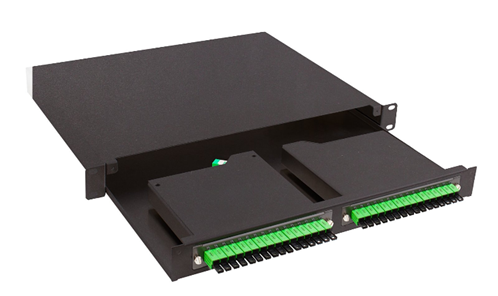

PUDOS-1L-32-E2F A The view of opened frame Sliding shelf with two CAPL cassettes	PUDOS-1L-32-E2F A 32x E2000/APC adaptors	CAPL/F-16S7A-E2 A-SNMT16 Fan-out cassette

19” 1U Rack-mount
Data Centers
FTTH networks
