OPT-SRI Wall Mounting Safe Rack IP65
Wall mounting safe racks OPT-SRI are designed for industrial applications. OPT-SRI racks provided IP65 protection class against dust and water ingress.
Application areas are semi-open areas like factories, warehouses, lean-to roof conditions, where no direct rain and environmental effects. Totally gasketed door, IP65 performing casted handled locking with one point or three point locking system, isolated cable entries provides the best performance on the water and dust ingress.
t=1.5mm thickness material, mono block welded construction, with surface finish, type thermoreactive powder coating, thickness 80-120μm in RAL7038 light grey color or optionally RAL9005 black color. The paint is intended for outdoor use and is composed of pure polyester, it provides the corrosion resistence.
- Width : 600 mm
- Depth : 400/500/600 mm
- RAL 7038, optionally other colors
- Grounding set is as standard accessories
- Optional additional accessories (shelves, PDU, light, fans, roof, etc.)
Opened OPT-SRI rack |
Closed OPT-SRI rack |
Roof |
Skeleton edge detail |
Pitch of holes for wall mounting |
Four holes with plugs at the back of racks |
Standard lock and key for 1 point locking system | Single point cylindrical lock (optional) | Lock cover (optional) |

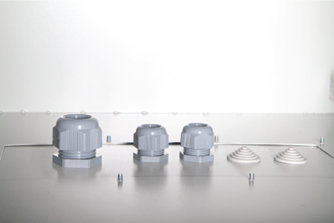

Example of cable entries: Multiple access with 2x PG21, 1x PG48 integrated cable entry pats, 2 pcs 28mm diameter PVC Blind cap. Which all of are as option can be replaced with PG21 cable entry pats |
Wall-mounting bracket OPT-W-WB*
|
*Note 1) Package includes: 1 set wall bracket = 4pcs + 4pcs hexagonal nut M8 with flange
Using: The possibility of mounting the rack on the wall from the outside of the cabinet, it means attaching the already equipped cabinet to the wall (we recommend to attach the brackets to the cabinet, even before equipping)
Casted iron handled locking with 3point locking system provides security and anti-vandal structure, where helps maintaining the IP65 protection. Grounded front door to the main body with yellow/green 4,0 mm diameter copper wire. 19’’ rails of OPT-SRI OPTOKON rack are with automated silk-screen U numbering, depends on size 4U to 28U, same from top to bottom or bottom to top results to same U height selection. No matter from where you have started counting. |
• PDU (Power distribution units).
• Shelves
• Light
• Fans
• Roof
• 1U Fiber management panel
• Wall-mounting brackets
OPT-SRI |
- |
6x |
- |
15U |
- |
x |
- |
X /(xPGy)* |
||
|
|
|
|
|
|
|
|
|
||
|
|
Size |
|
Height |
|
Colour |
|
Lock |
||
|
|
6-width 600mm |
|
(Unit) |
|
G (Grey) |
RAL7038 |
|
L |
1 point locking system |
|
|
x-depth 6,5,4 |
|
|
|
B (Black) |
RAL9005 |
|
3L |
3 point locking system |
* Optionally: xPGy – PG cable glands (x = quantity of PG holes, y = PG size)
Products with depth 600 mm
Product number |
Description |
Height (U) |
Height (mm) |
Width (mm) |
Depth (mm) |
OPT-SRI-66-04U-x-X |
4U 19" Wall mounting rack, IP65 |
4 |
245 |
600 |
600 |
OPT-SRI-66-06U-x-X |
6U 19" Wall mounting rack, IP65 |
6 |
335 |
600 |
600 |
OPT-SRI-66-09U-x-X |
9U 19" Wall mounting rack, IP65 |
9 |
470 |
600 |
600 |
OPT-SRI-66-12U-x-X |
12U 19" Wall mounting rack, IP65 |
12 |
600 |
600 |
600 |
OPT-SRI-66-15U-x-X |
15U 19" Wall mounting rack, IP65 |
15 |
735 |
600 |
600 |
OPT-SRI-66-18U-x-X |
18U 19" Wall mounting rack, IP65 |
18 |
870 |
600 |
600 |
OPT-SRI-66-21U-x-X |
21U 19" Wall mounting rack, IP65 |
21 |
1000 |
600 |
600 |
OPT-SRI-66-24U-x-X |
24U 19" Wall mounting rack, IP65 |
24 |
1135 |
600 |
600 |
OPT-SRI-66-28U-x-X |
28U 19" Wall mounting rack, IP65 |
28 |
1315 |
600 |
600 |
Products with depth 500 mm
Product number |
Description |
Height (U) |
Height (mm) |
Width (mm) |
Depth (mm) |
OPT-SRI-65-04U-x-X |
4U 19" Wall mounting rack, IP65 |
4 |
245 |
600 |
500 |
OPT-SRI-65-06U-x-X |
6U 19" Wall mounting rack, IP65 |
6 |
335 |
600 |
500 |
OPT-SRI-65-09U-x-X |
9U 19" Wall mounting rack, IP65 |
9 |
470 |
600 |
500 |
OPT-SRI-65-12U-x-X |
12U 19" Wall mounting rack, IP65 |
12 |
600 |
600 |
500 |
OPT-SRI-65-15U-x-X |
15U 19" Wall mounting rack, IP65 |
15 |
735 |
600 |
500 |
OPT-SRI-65-18U-x-X |
18U 19" Wall mounting rack, IP65 |
18 |
870 |
600 |
500 |
OPT-SRI-65-21U-x-X |
21U 19" Wall mounting rack, IP65 |
21 |
1000 |
600 |
500 |
OPT-SRI-65-24U-x-X |
24U 19" Wall mounting rack, IP65 |
24 |
1135 |
600 |
500 |
OPT-SRI-65-28U-x-X |
28U 19" Wall mounting rack, IP65 |
28 |
1315 |
600 |
500 |
Products with depth 400 mm
Product number |
Description |
Height (U) |
Height (mm) |
Width (mm) |
Depth (mm) |
OPT-SRI-64-04U-x-X |
4U 19" Wall mounting rack, IP65 |
4 |
245 |
600 |
400 |
OPT-SRI-64-06U-x-X |
6U 19" Wall mounting rack, IP65 |
6 |
335 |
600 |
400 |
OPT-SRI-64-09U-x-X |
9U 19" Wall mounting rack, IP65 |
9 |
470 |
600 |
400 |
OPT-SRI-64-12U-x-X |
12U 19" Wall mounting rack, IP65 |
12 |
600 |
600 |
400 |
OPT-SRI-64-15U-x-X |
15U 19" Wall mounting rack, IP65 |
15 |
735 |
600 |
400 |
OPT-SRI-64-18U-x-X |
18U 19" Wall mounting rack, IP65 |
18 |
870 |
600 |
400 |
OPT-SRI-64-21U-x-X |
21U 19" Wall mounting rack, IP65 |
21 |
1000 |
600 |
400 |
OPT-SRI-64-24U-x-X |
24U 19" Wall mounting rack, IP65 |
24 |
1135 |
600 |
400 |
OPT-SRI-64-28U-x-X |
28U 19" Wall mounting rack, IP65 |
28 |
1315 |
600 |
400 |
Note: 4U and 6U height is not produced with 3 point locking system.
