FO 22 - Splice and Termination Box
The FO 22 is a cost effective wall mount interconnect indoor cabinet designed for splice, storage and protection of 4 to 24 fiber optic connections. These compact, modular units are ideal for use in locations such as building entrance terminals, telecommunications closets and other controlled environments where wall space is at premium. The FO 22 is from aluminium-magnesium alloy 5754 material (excellent corrosion resistance and very high strength)
- FO-22 base
- Top cover
- Mounting kit (splice holder, screws, curlocks)
- Splice sleeves - according to fiber capacity
- Easy wall mounting
- Craft friendly - protection for facility and user connections
- Modular system
- Easy access to individual connectors
- Durable powder coat finish
- Easy exchangeable panels for most common connector types
- Bushing PG for firm holding of optical cable
- Optionaly DIN rail mounting
- Capacity up to 24 fibers
- Material-aluminium-magnesium alloy-low weight and shipment costs
|
PART NUMBER |
FIBER CAPACITY |
DIMENSIONS (H x W x D) mm |
SHIP WGT (kg) |
|
FO 22 |
up to 24 |
205 x 130 x 30 |
0.7 kg |
|
|
|
|
|
FO 22 with CNPM-DSC-06 |
FO 22 global overview |
Back side of FO 22 |
Fiber patch panel
|
FO adapter panels |
Number of adapters |
Fibers |
|
CNPM – ST – 06 (08) |
6 (8)x ST type |
6 (8) |
|
CNPM – FC – 06 (08) |
6 (8)x FC type |
6 (8) |
|
CNPM – E2/SC/DLC – 06 (08) |
6 (8)x LSH (E2000) or SC type or duplex LC type (SC footprint) |
6 (8) |
|
CNPM – DSC/QLC – 03 |
3x duplex SC or QLC type |
6/12 |
|
CNPM – DSC/QLC – 06 |
6x duplex SC or QLC type |
12/24 |
|
CNPM – DE2 – 06 |
6x duplex LSH (E2000) compact |
12 |
|
CNPM – MJ – 06 |
6 x MT-RJ type |
12 |
|
CNPM – DMU – 06 |
6 x duplex MU type |
12 |
|
CNPM – 00 |
Blank panel |
0 |
 |
 |
 |

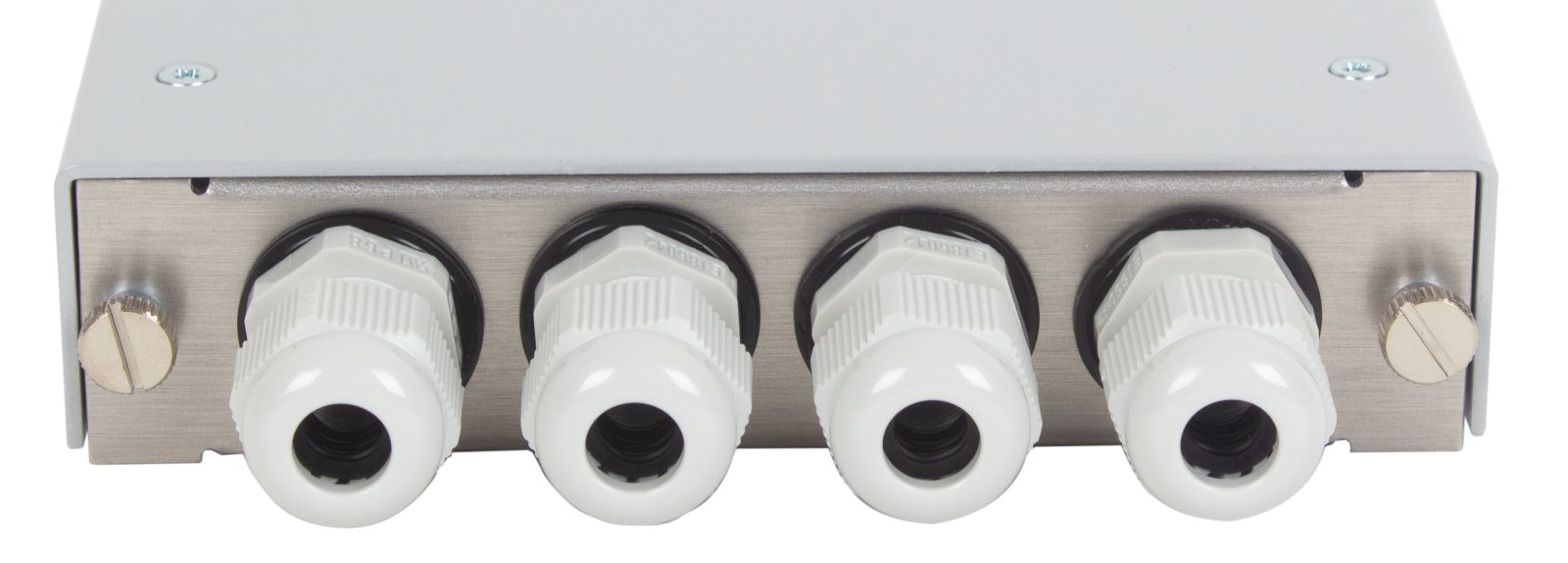

| FO 22 entry panel with PG9 bushing | FO 22 entry panel with 2 x PG9 bushing | FO 22 entry panel with 4 x PG9 bushing |
|
FO 22 |
- |
XX |
- |
XX(F)1 X |
- |
X/X2 (Panels option)_DIN (optional) |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||
|
2, 4, …12, 24 fibers |
|
|
|
FO 22 Panels |
|
|||||||||
|
|
|
|
|
|
|
|
|
CNPM-00 |
Universal blank panel |
|||||
|
ST |
ST |
M |
Multimode |
|
|
CNPM-PG9 |
Entry panel including PG9 bushing |
|||||||
|
SC |
SC |
S |
Singlemode |
|
|
CNPM-PG9-02 |
Entry panel including 2 x PG9 bushing |
|||||||
|
FC |
FC |
A |
APC |
|
|
CNPM-PG9-04 |
Entry panel including 4 x PG9 bushing |
|||||||
|
E2 |
LSH (E2000) |
|
|
|
|
CNPM-XX2 |
According CNPM panels datasheet |
|||||||
|
DSC |
Duplex SC |
|
|
|
|
|||||||||
|
DE2 |
Duplex LSH |
|
|
|
Example of code: |
|||||||||
|
DLC |
Duplex LC |
|
|
|
FO 22-24-QLC S-CNPM-PG9-04/CNPM-QLC-06 DIN |
|||||||||
|
QLC |
Quadruplex LC |
|
|
|
|
|||||||||
NOTE: 1) ”F” – Fixed adaptors by screws
2) Coupling panels according to datasheet: CMS_24-01_EN-CNPM
