MCNP-L Rack Mount Connector Network Panel
The MCNP-L Connector network panel is an economical rack mountable ODF – optical distribution frame for use with splicing of manufactured pigtails, pre terminated cables and field-installable connectors. Made of lightweight and resistant aluminum alloy the MCNP-L offers user friendly handling during installation and operation and low transportation costs. The incoming cables are strain-relieved at the rear panel of the unit. The pivoting shelf can be equipped with either a splice tray holder or bend radius protection which guides, stores and organizes excess slack. This prevents damage to fibers prior to routing into couplings. The MCNP-L is used in installations where space is limited.
- Splicing and termination optical cable in one box
- Pivoting shelf eases connector routing and cable routing
- Extended (f.e. 4 coupling CNPL panels per 2U) version available
- Accommodates up to 72 fibers in 2 rack unit
- Splice cassette holder enables cable termination with the help of pigtail splicing
- Made of lightweight aluminum alloy with RAL 9006 colour1
- Labeling and numbering
- Protection: IP20
- Cable strain-relief and grounding provisions
- Accepts the industry's most common connector types
- FTTH use – microtubes holder included
- Passed seismic tests according to ASME standards
- Approved for Construction of Nuclear Power Plant Components
- Operating temperature -40 to +85 °C
|
PART NUMBER |
FIBER CAPACITY3 |
RACK UNITS |
DIMENSIONS (HxWxD) mm |
SHIP WGT (kg) |
|
CNPL-12-FC4 |
||||
|
MCNP – 2L |
48 FC adapters |
2 |
88 x 432 x 239 |
3.8 |
|
MCNP – 3L |
72 FC adapters |
3 |
133 x 432 x 239 |
5.5 |
Note:
|
1) The material possibility - Luxury Stainless Steel Look (SSL) |
|
|
|
Closed MCNP-2L-24-FC-S-C-2 /A |
|
|

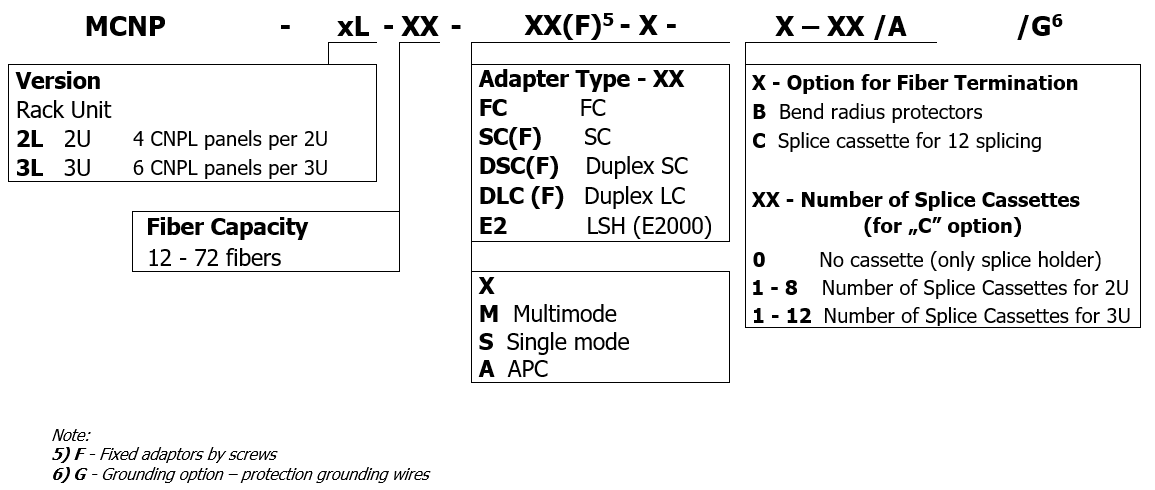

Parts which are available separately: X = 2, 3 – rack unit |
|
MCNP |
- |
XL |
- |
XX |
- |
XX(F)4 - X - |
|
X – XX /A |
/SSL5 |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
Version |
|
|
|
|
|
Adapter Type - XX |
|
X - Option for Fiber Termination |
||||||
|
Rack Unit |
|
|
|
|
|
|
|
FC FC |
|
B Bend radius protectors |
||||
|
2 2U |
|
4 CNPL panels per 2U |
|
|
|
SC(F) SC |
|
C Splice cassette for 12 splicing |
||||||
|
3 3U |
|
6 CNPL panels per 3U |
|
|
|
|
DSC(F) Duplex SC |
|
|
|||||
|
|
|
|
|
|
|
|
DLC (F) Duplex LC |
|
XX - Number of Splice Cassettes |
|||||
|
|
|
Fiber Capacity |
|
|
|
|
E2 LSH (E2000) |
|
(for „C” option) |
|||||
|
|
|
12 - 72 fibers |
|
|
|
|
|
|
0 No cassette (only splice holder) |
|||||
|
|
|
|
|
|
|
|
|
X |
|
1 - 8 Number of Splice Cassettes for 2U |
||||
|
|
|
|
|
|
|
|
|
M Multimode |
|
1 - 12 Number of Splice Cassettes for 3U |
||||
|
|
|
|
|
|
|
|
|
S Single mode |
|
|
|
|||
|
|
|
|
|
|
|
|
|
A APC |
|
|
|
|||
Note:
4) F - Fixed adaptors by screws
5) The material possibility - Luxury Stainless Steel Look (SSL)
|
|
|
|
Front view of MCNP-2L-48-FC-S-C-4 /A |
Back view of MCNP-2L-48-FC-S-C-4 /A |
